Intelligent Production Systems

Core Machinery &
Foundry Automation Systems

High-speed hydraulic molding machines, patented induction pre-foamers, and industrial heat pump dehumidification systems engineered for reliable, repeatable casting yields with full local Indian technical service.

Live Demonstration: Hydraulic Foam Molding Cycle 1080p HD

▶

Quick Mold Change

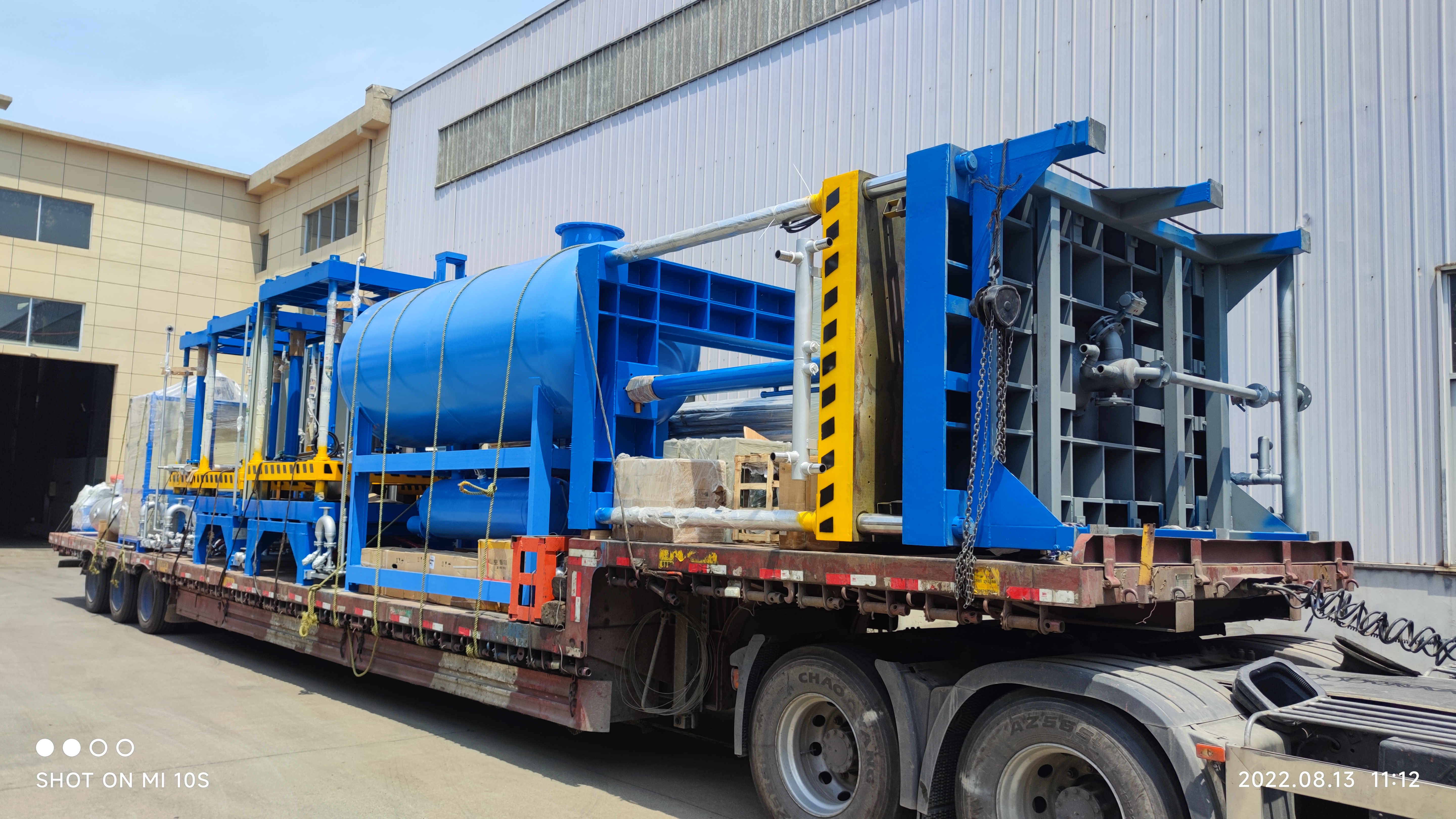

Equipment Unit

Schematic View

Next-Gen Hydraulic Actuation

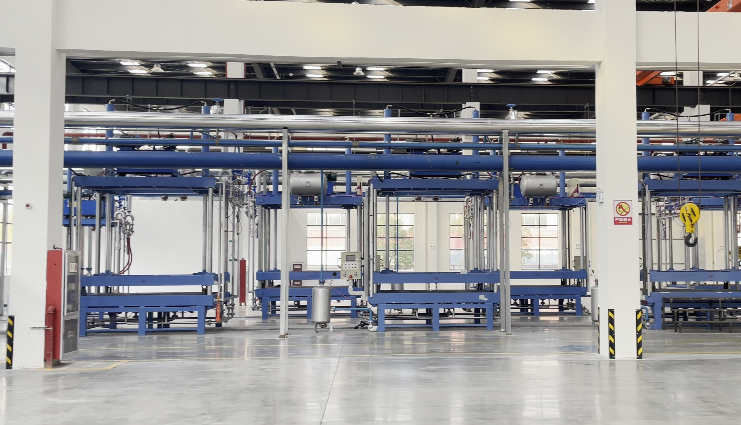

Vertical PLC Hydraulic Foam Molding Machine

Engineered for rapid white mold pattern forming. Replaces traditional mechanical screw linkages with dual high-speed proportional hydraulic cylinders, delivering up to 4x faster mold opening and clamping speeds with smooth deceleration.

4x Faster Mold Cycling

Fast-speed travel with differential pre-fill valves cuts idle cycle times drastically, maximizing daily pattern throughput.

Q325 Hot-Dip Galvanizing

Molding platens treated with Q325 galvanization and precision CNC plane milling for long-term corrosion immunity against steam moisture.

Real-Time Data Traceability

Integrated PLC logs steaming duration, cooling curve, mold temperature, and error logs with USB export for ISO foundry compliance.

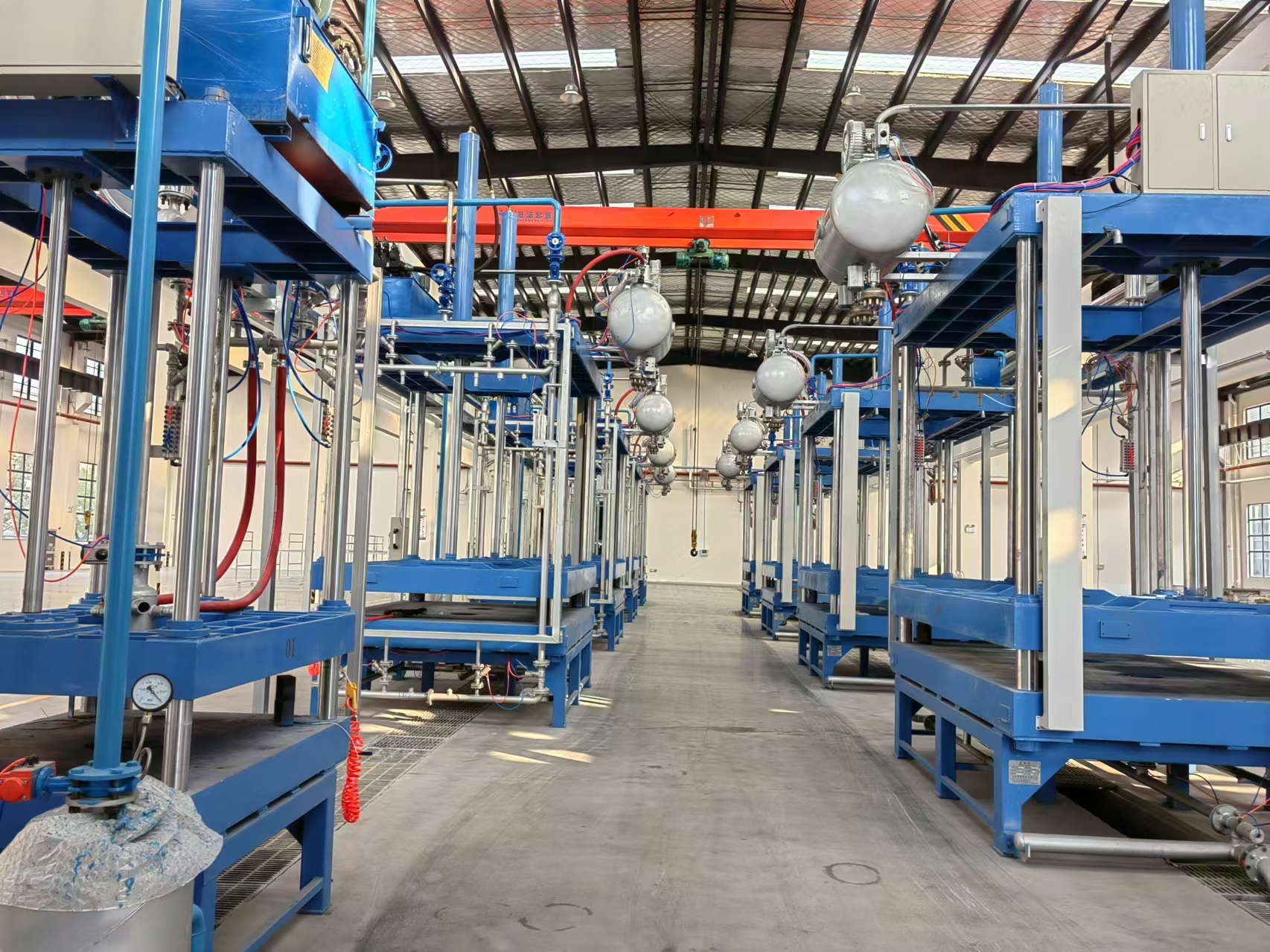

Quick Mold Change System

Slide-in mold clamping bars with pneumatic quick-release connectors minimize pattern changeover time to under 15 minutes.

Request Molding Machine Quotation →

Standard Machine Specifications & Model Matrix

Vertical PLC hydraulic molding series specifications. Custom platen sizes engineered upon client request.

CE Certified Standard

Model Code	Platen Table Size (mm)	Stroke / Itinerary (mm)	Control & Actuation	Typical Application
OC-CX-Y1210	1200 × 1000	1500	PLC + Hydraulic Cylinder	Automotive components, small pump housings
OC-CX-Y1512	1500 × 1200	1500	PLC + Hydraulic Cylinder	Valve bodies, gearbox housings, motor casings
OC-CX-Y1815	1800 × 1500	1800	PLC + Hydraulic Cylinder	Diesel engine blocks, manifolds, brake discs
OC-CX-Y2318	2300 × 1800	2000	PLC + Proportional Hydraulic	Heavy commercial vehicle axle housings, large valves
OC-CX-Y2822	2800 × 2200	2500	PLC + Proportional Hydraulic	Large structural machinery frames, crusher jaws

Live Demonstration: 5th-Gen Fluidized Bed Pre-Foamer 1080p HD

National Patent ZL201310070916.X

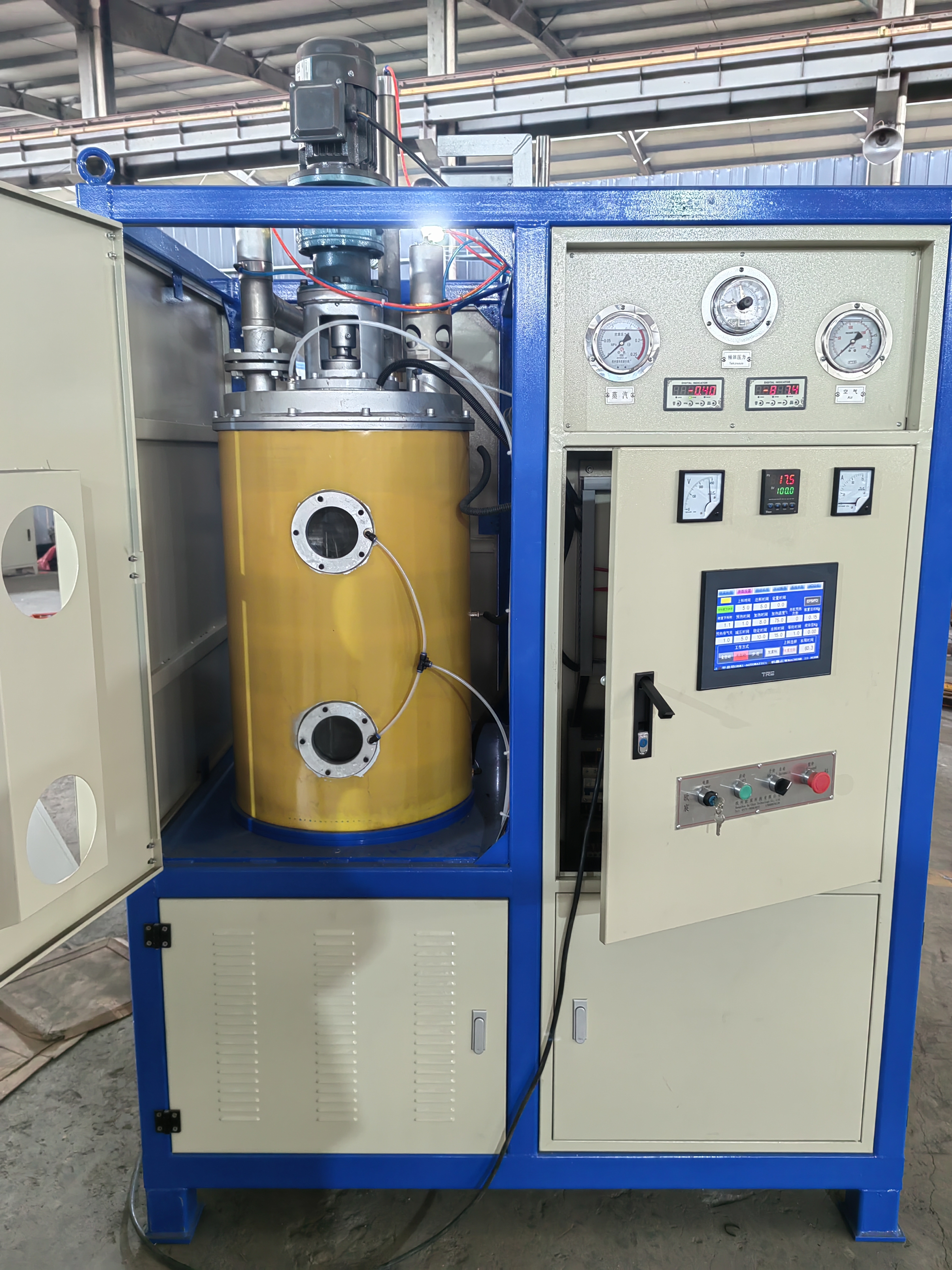

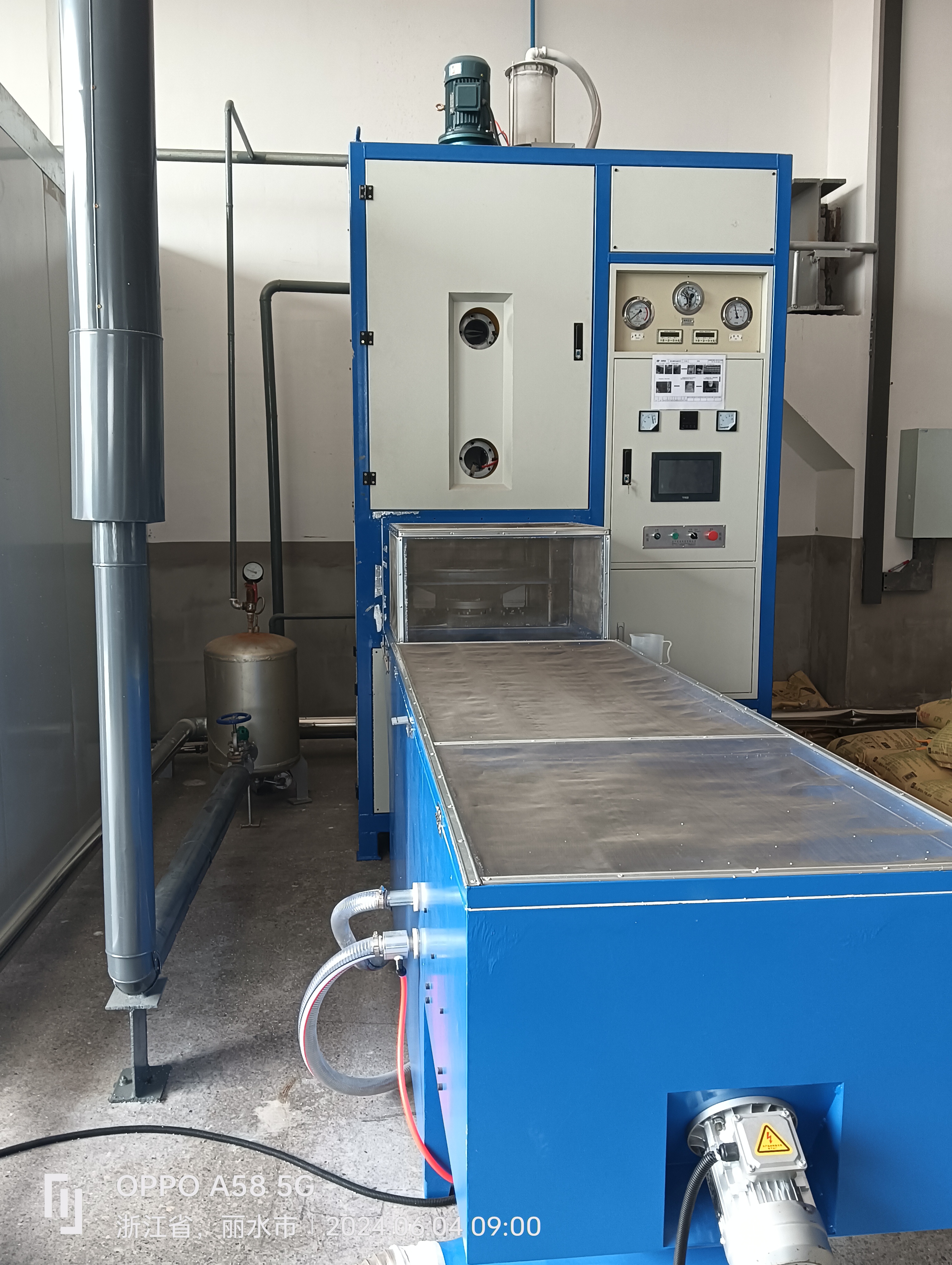

5th-Gen Automatic Pre-Foamer with Fluidized Bed

High-precision expandable polystyrene (EPS) and copolymer bead expansion system. Features patented induction steam preheating, electronic load cell metering (±1g accuracy), and continuous fluidized bed drying to ensure zero bead clumping and perfect pattern density.

Patented 98°C Dry Saturated Steam Pre-Heating: Prevents raw steam moisture condensation on raw beads, ensuring perfectly uniform thermal expansion across every granule.

Dual Stainless Vibrating Fluidized Bed: Continuous airflow fluidization immediately dries expanded beads, prevents agglomeration, and conveys beads directly to curing silos.

Burkert Angle Seat Valve & Electronic Weight Control: High-precision weighing hopper meters bead charge with ±1g repeatability, ensuring consistent casting density down to ±0.5 g/L.

Inquire Pre-Foamer Machine →

Pre-Foamer Technical Parameters

Parameter	Model OC-YF-Y450	Model OC-YF-Y550
Batch Capacity	30 – 45 kg / batch	45 – 60 kg / batch
Expansion Density Range	16 – 30 g/L (±0.5 g/L)	16 – 30 g/L (±0.5 g/L)
Fluidized Bed Size	2,300 × 750 mm (Stainless)	3,000 × 850 mm (Stainless)
Steam Working Pressure	0.6 – 0.8 MPa	0.6 – 0.8 MPa
Control Architecture	Siemens PLC + Touch Screen HMI	Siemens PLC + Touch Screen HMI

Energy-Efficient Lost Foam Drying

Air-Source Heat Pump Drying & Dehumidification Systems

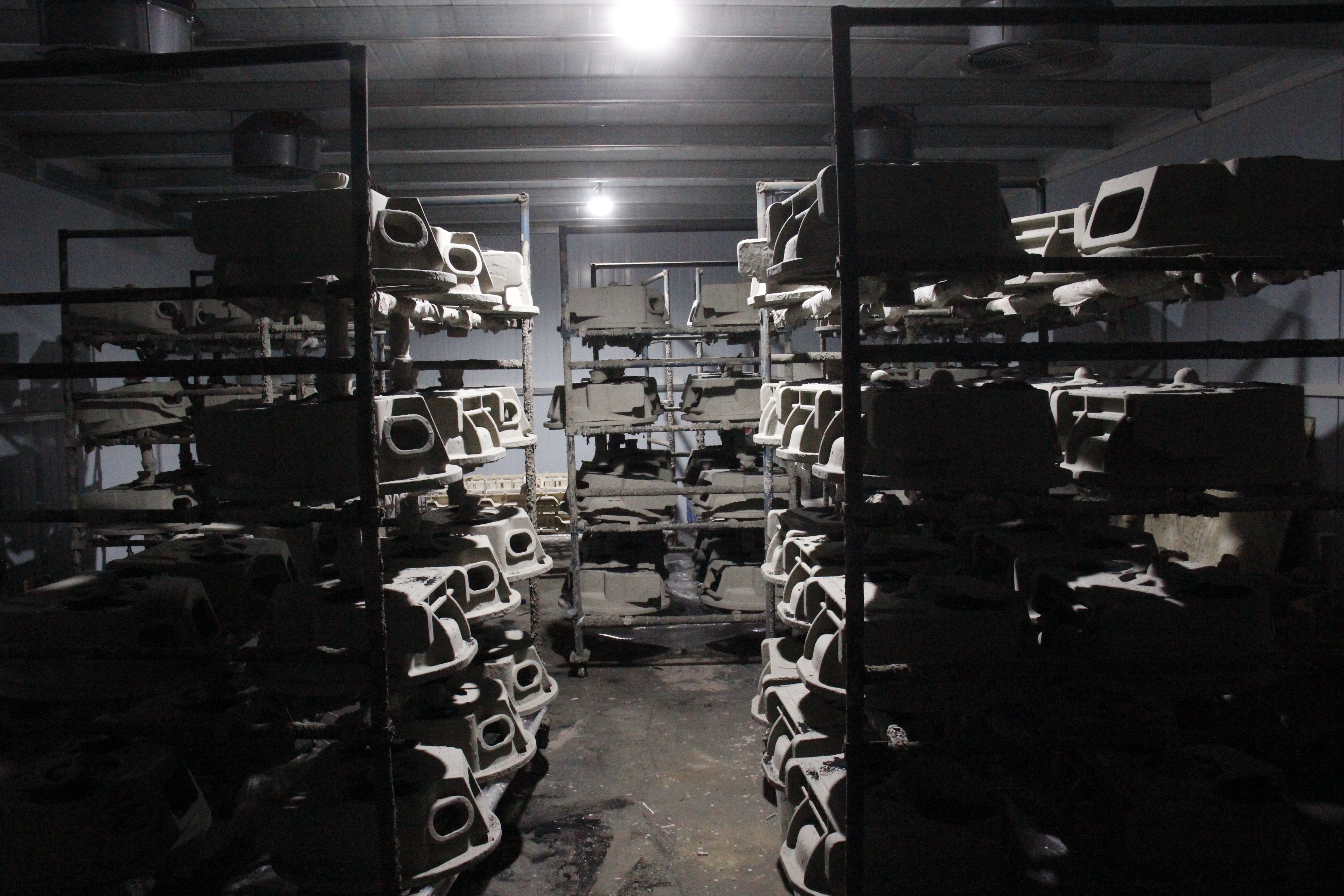

Engineered exclusively for Lost Foam pattern coating drying rooms. Achieves open/closed loop 3-tier heat recovery with >70% residual heat recapture and COP > 2.0—discharging moisture without losing valuable thermal energy.

Configuration A 100% Floor Space Saved

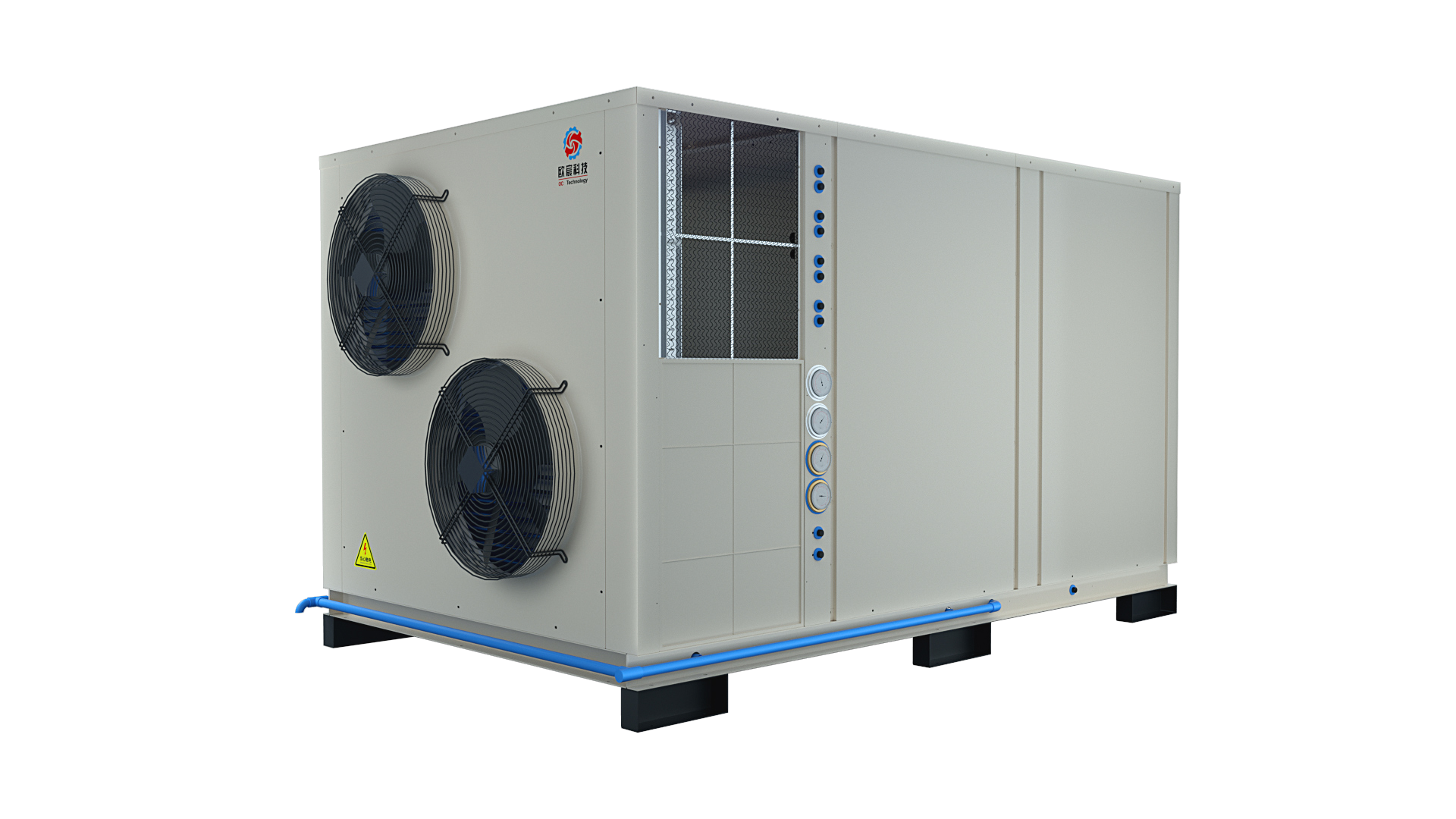

Top-Mounted Overhead Heat Pump System

Installation Position: Overhead Top Mounted (Zero room footprint)

Temperature Range: 35°C to 60°C (Room variance < 5°C)

Relative Humidity: Controlled down to ≤ 15% RH

Energy Efficiency: COP > 2.0 (Heat recovery > 70%)

Digital Interface: Visual LCD Controller + Mobile IoT Module

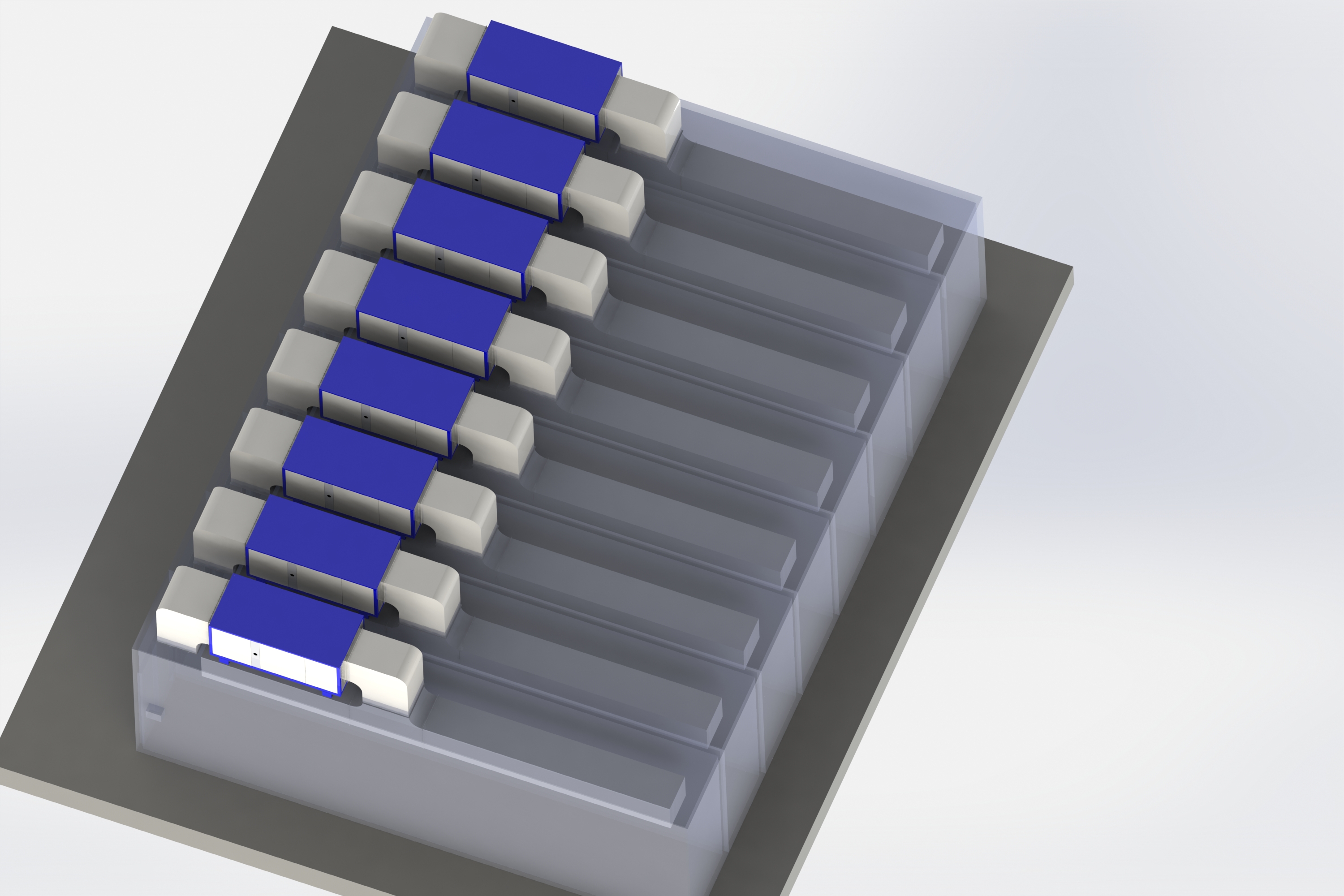

Connects to roof pipeline air ducts to distribute laminar dry heated airflow down across cluster racks. Features mobile app telemetry for shift monitoring and energy metrics.

Inquire Top-Mounted System →

Configuration B Heavy Continuous Duty

Rear-Mounted Side Ducted Drying Machine

Installation Position: External Floor/Side Wall Mounted

Evaporator / Condenser: Dual Oversized Blue-Fin Hydrophilic Coils

Moisture Extraction Rate: 3x Higher Dehumidification Capacity

Maintenance Access: External access without entering hot drying room

Operational Life: Heavy-duty industrial grade compressor (15+ yrs)

Ideal for high-throughput pattern coating rooms and multi-tier track layouts. Oversized condensers handle intense continuous moisture loads without freezing or thermal stalling.

Inquire Rear-Mounted System →
